Instrumentation Manifold Valve
download brochure
Home
Instrumentation Manifold Valve
PRESSURE RELIEF VALVE (PRV)
Read More
2 VALVE MANIFOLD R TYPE (2VMR)
Read More
2 VALVE MANIFOLD T TYPE (2VMT)
Read More
3 VALVE MANIFOLD R TYPE (3VMR)
Read More
3 VALVE MANIFOLD T TYPE (3VMT)
Read More
3 VALVE MANIFOLD H TYPE (3VMH)
Read More
5 VALVE MANIFOLD R TYPE (5VMR)
Read More
5 VALVE MANIFOLD T TYPE (5VMT)
Read More
5 VALVE MANIFOLD H TYPE (5VMH)
Read More
MONO FLANGE (MF1)
Read More
MONO FLANGE (MF2)
Read More
MONO FLANGE (MF3)
Read More
PRESSURE RELIEF VALVE (PRV)
×
End Connection
: FPT / MPT / TOD
Female Pipe Thread Size (FPT/MPT)
: 1/8" to 2" NPT Female ( Taper) Threads (BSPP / BSPT / ISO / Metric or Any Other Threads on Request)
Tube OD size (TOD)
: 1/4" OD to 1" OD ( Fractional ) From 6mm OD to 25mm OD ( Matric )
Set Pressure
: As per Customer Requirement
Seal Ring
: Viton / Neoprene / Silicon
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: PRV - IN - OUT - MOC

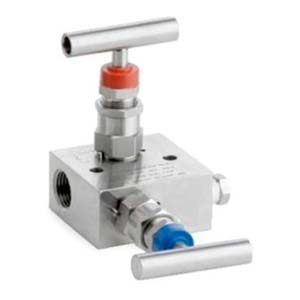

2 VALVE MANIFOLD R TYPE (2VMR)
×
End Connection
: FPT
Female Pipe Thread Size (FPT/MPT)
: 1/4" to 2" NPT Female ( Taper) Threads (BSPP / BSPT / ISO / Metric or Any Other Threads on Request)
Test Pressure
: Upto 6000 PSI / 10000 PSI
Gland Packing
: Standard PTFE ( Grafoil for high temperature)
Type
: Remote Mounting Type
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: 2VMR - FPT - FPT - DRAIN - MOC
2 VALVE MANIFOLD T TYPE (2VMT)
×
End Connection
: FPT x TF
Female Pipe Thread Size (FPT/MPT)
: 1/4" to 2" NPT Female ( Taper) Threads (BSPP / BSPT / ISO / Metric or Any Other Threads on Request)
Out / Process Connection
: Transmitter Flange ( TF )
Test Pressure
: Upto 6000 PSI / 10000 PSI
Gland Packing
: Standard PTFE ( Grafoil for high temperature)
Type
: Transmitter Mounting Type
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: 2VMT - FPT - TF - DRAIN - MOC

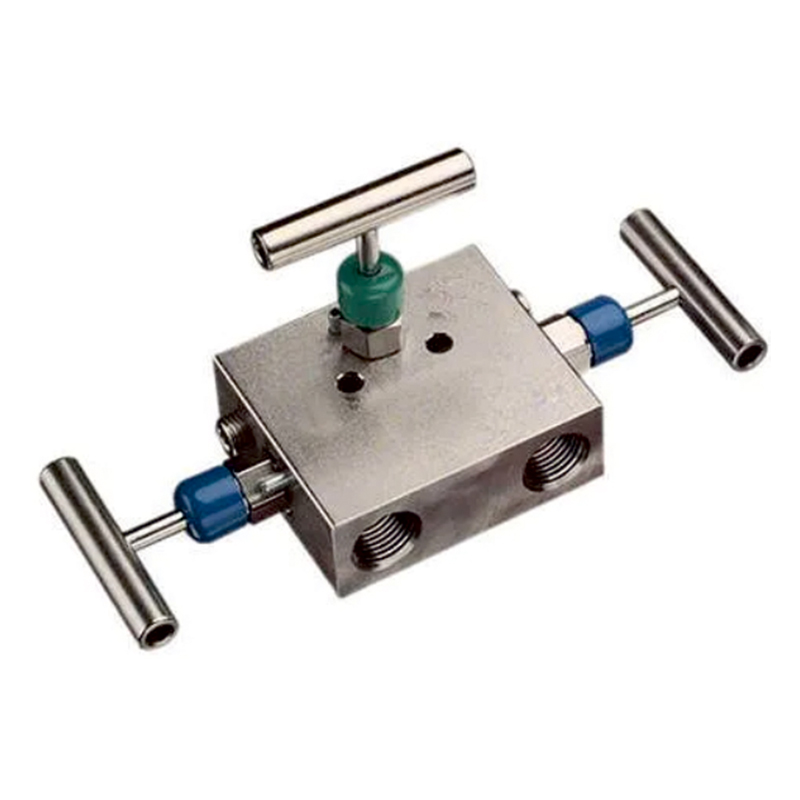

3 VALVE MANIFOLD R TYPE (3VMR)
×
End Connection
: FPTF
Female Pipe Thread Size (FPT/MPT)
: 1/4" to 2" NPT Female ( Taper) Threads (BSPP / BSPT / ISO / Metric or Any Other Threads on Request)
Test Pressure
: Upto 6000 PSI / 10000 PSI
Gland Packing
: Standard PTFE ( Grafoil for high temperature)
Type
: Remote Mounting Type
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: 3VMR - FPT - FPT - DRAIN - MOC
3 VALVE MANIFOLD R TYPE (3VMR)
×
End Connection
: FPTF
Female Pipe Thread Size (FPT/MPT)
: 1/4" to 2" NPT Female ( Taper) Threads (BSPP / BSPT / ISO / Metric or Any Other Threads on Request)
Test Pressure
: Upto 6000 PSI / 10000 PSI
Gland Packing
: Standard PTFE ( Grafoil for high temperature)
Type
: Remote Mounting Type
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: 3VMR - FPT - FPT - DRAIN - MOC

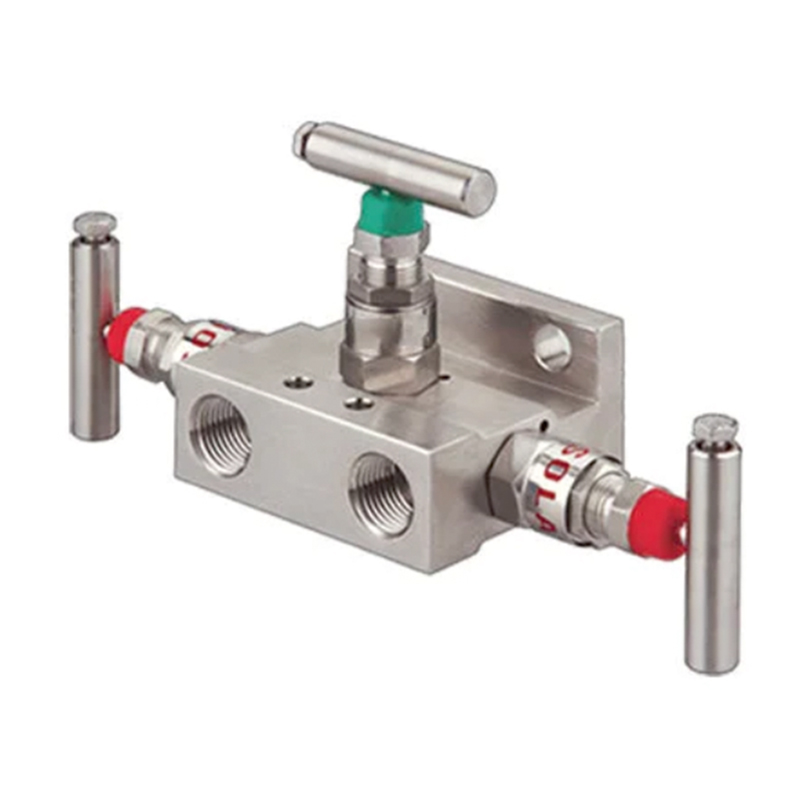

3 VALVE MANIFOLD T TYPE (3VMT)
×
End Connection
: FPT
Female Pipe Thread Size (FPT/MPT)
: 1/4" to 2" NPT Female ( Taper) Threads (BSPP / BSPT / ISO / Metric or Any Other Threads on Request)
Out / Process Connection
: Transmitter Flange ( TF )
Test Pressure
: Upto 6000 PSI / 10000 PSI
Gland Packing
: Standard PTFE ( Grafoil for high temperature)
Type
: Transmitter Mounting Type
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: 3VMT - FPT - TF - DRAIN - MOC
3 VALVE MANIFOLD H TYPE (3VMH)
×
End Connection
: TF
In & Out / Process Connection
: Transmitter Flange ( TF )
Test Pressure
: Upto 6000 PSI / 10000 PSI
Test Pressure
: Upto 6000 PSI / 10000 PSI
Gland Packing
: Standard PTFE ( Grafoil for high temperature)
Type
: Transmitter Mounting Type
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: 3VMH - FT - TF - DRAIN - MOC

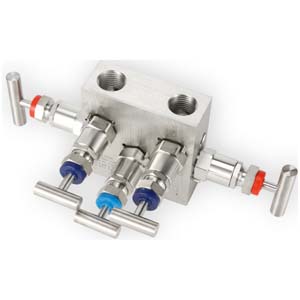

5 VALVE MANIFOLD R TYPE (5VMR)
×
End Connection
: FPT
Female Pipe Thread Size (FPT/MPT)
: 1/4" to 2" NPT Female ( Taper) Threads (BSPP / BSPT / ISO / Metric or Any Other Threads on Request)
Test Pressure
: Upto 6000 PSI / 10000 PSI
Gland Packing
: Standard PTFE ( Grafoil for high temperature)
Type
: Remote Mounting Type
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: 5VMR - FPT - FPT - DRAIN - MOC
5 VALVE MANIFOLD T TYPE (5VMT)
×
End Connection
: FPT
Female Pipe Thread Size (FPT/MPT)
: 1/4" to 2" NPT Female ( Taper) Threads (BSPP / BSPT / ISO / Metric or Any Other Threads on Request)
Out / Process Connection
: Transmitter Flange ( TF )
Test Pressure
: Upto 6000 PSI / 10000 PSI
Gland Packing
: Standard PTFE ( Grafoil for high temperature)
Type
: Transmitter Mounting Type
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: 5VMT - FPT - TF - DRAIN - MOC
5 VALVE MANIFOLD H TYPE (5VMH)
×
End Connection
: TF
In & Out / Process Connection
: Transmitter Flange ( TF )
Test Pressure
: Upto 6000 PSI / 10000 PSI
Gland Packing
: Standard PTFE ( Grafoil for high temperature)
Type
: Transmitter Mounting Type
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: 5VMH - FT - TF - DRAIN - MOC

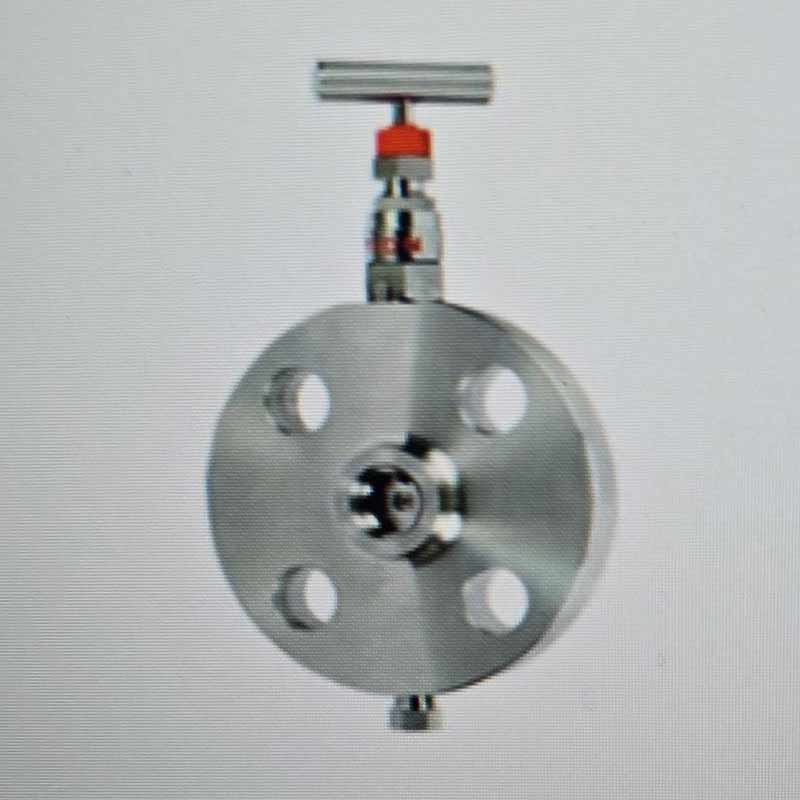

MONO FLANGE (MF1)
×
End Connection / Type
: FPT x FL / ISOLATION TYPE
Female Pipe Thread Size (FPT/MPT)
: 1/4" to 1/2" NPT Female ( Taper) Threads (BSPP / BSPT / ISO / Metric or Any Other Threads on Request)
Flange Connection (FL)
: 1/2" to 2" Flange / 150 to 2500 # / RF / RTJ
Flange Type (FT)
: ANSO B16.5 / DIN
Gland Packing
: Standard PTFE ( Grafoil for high temperature)
Optional
: NACE Certification / Oxygen Service
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: MF1 - FPT - FL - DRAIN - OPTIONAL - MOC
MONO FLANGE (MF2)
×
End Connection / Type
: FPT x FL / BLOCK AND BLEED TYPE
Female Pipe Thread Size (FPT/MPT)
: 1/4" to 1/2" NPT Female ( Taper) Threads (BSPP / BSPT / ISO / Metric or Any Other Threads on Request)
Flange Connection (FL)
: 1/2" to 2" Flange / 150 to 2500 # / RF / RTJ
Flange Type (FT)
: ANSO B16.5 / DIN
Gland Packing
: Standard PTFE ( Grafoil for high temperature)
Optional
: NACE Certification / Oxygen Service
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: MF2 - FPT - FL - DRAIN - OPTIONAL - MOC
MONO FLANGE (MF3)
×
End Connection / Type
: FPT x FL / DOUBLE BLOCK AND BLEED TYPE
Female Pipe Thread Size (FPT/MPT)
: 1/4" to 1/2" NPT Female ( Taper) Threads (BSPP / BSPT / ISO / Metric or Any Other Threads on Request)
Flange Connection (FL)
: 1/2" to 2" Flange / 150 to 2500 # / RF / RTJ
Flange Type (FT)
: ANSO B16.5 / DIN
Gland Packing
: Standard PTFE ( Grafoil for high temperature)
Optional
: NACE Certification / Oxygen Service
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: MF3 - FPT - FL - DRAIN - OPTIONAL - MOC
