Instrumentation Valve
download brochure
Home
Instrumentation Valve
NEEDLE VALVE (NV)
Read More
NEEDLE VALVE TUBE X TUBE (NV)
Read More
NEEDLE VALVE ANGLE (NVA)
Read More
NEEDLE VALVE WITH DRAIN (NVD)
Read More
MULTI PART NEEDLE VALVE (MPV)
Read More
BLOCK AND BLEED VALVE ( BBV)
Read More
BALL VALVE (BV)
Read More
BALL VALVEHIGH PRESSURE (BVHP)
Read More
BALL VALVE PANEL MOUNTING (BVPM)
Read More
THREE WAY BALLVALVE (3BVPM)
Read More
GAUGE COCK 2 Way (GC2)
Read More
GAUGE COCK 3 Way (GC3)
Read More

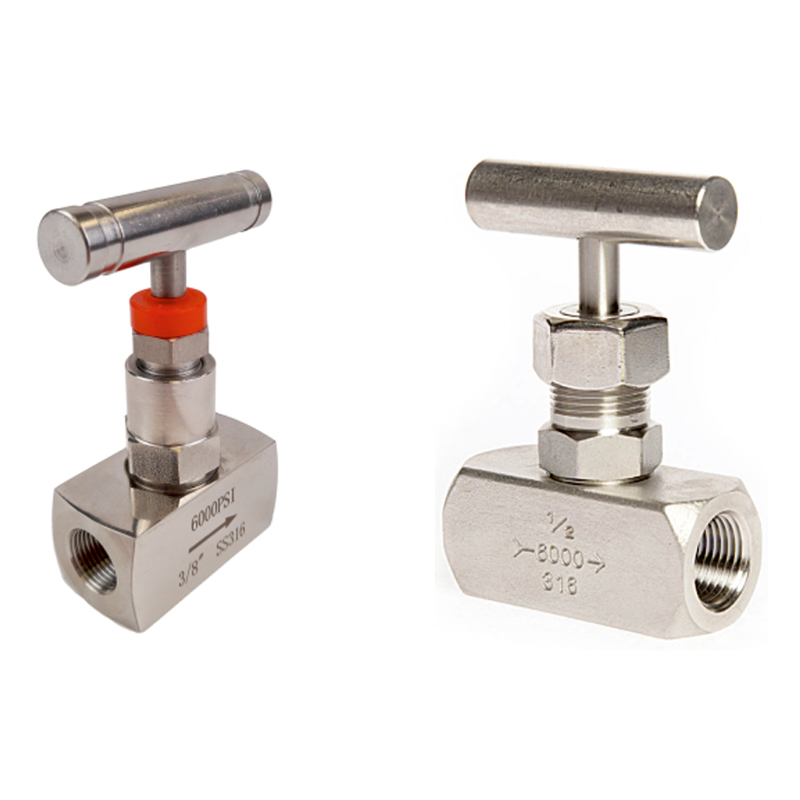

NEEDLE VALVE (NV)
×
End Connection
: FPT x FPT
Female Pipe Thread Size (FPT/MPT)
: 1/8" to 2" NPT Female ( Taper) Threads (BSPP / BSPT / ISO / Metric or Any Other Threads on Request)
Needle Valve With Panel Mounting Arrangement on Request
Test Pressure
: Upto 6000 PSI / 10000 PSI
Gland Packing
: Standard PTFE ( Grafoil for high temperature)
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: NV - FPT - FPT - MOC

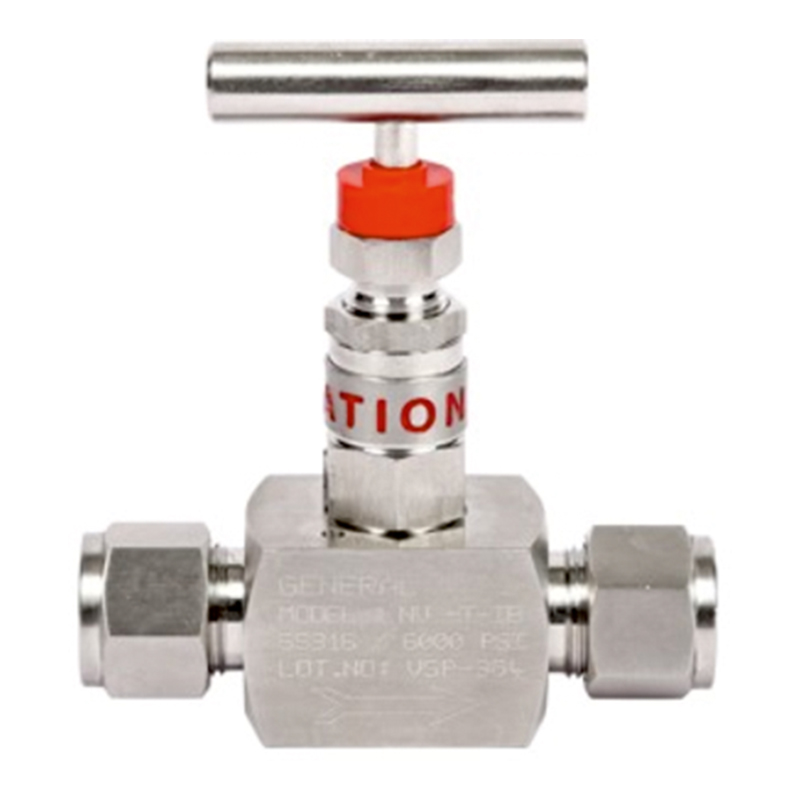

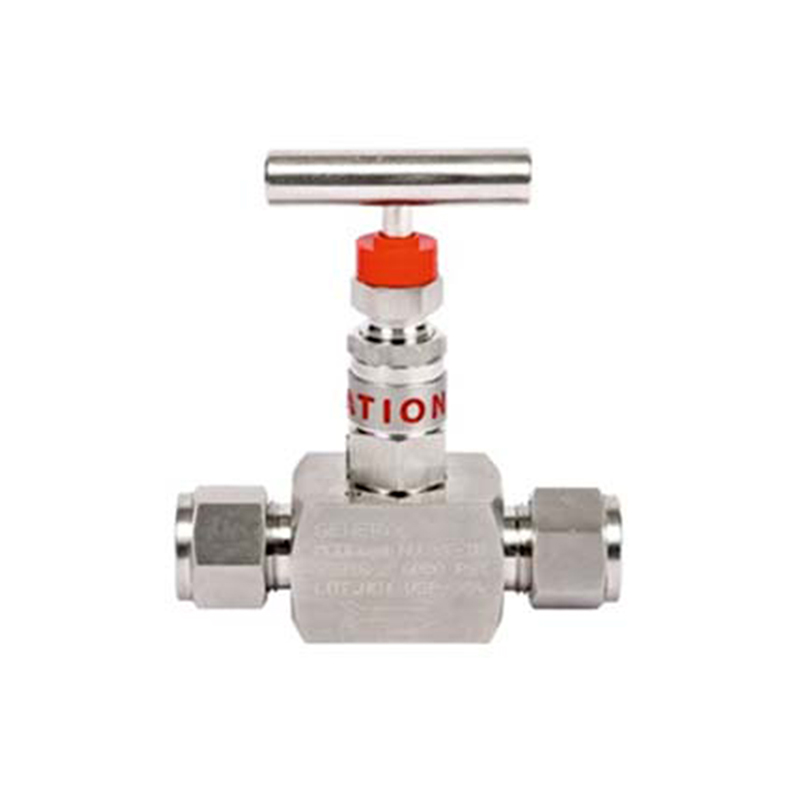

NEEDLE VALVE TUBE X TUBE (NV)
×
End Connection
: TOD x TOD
Tube OD Size (TOD)
: From 1/8" OD to 2" OD ( Fractional) From 3mm OD to 38mm OD ( Metric)
Needle Valve With Panel Mounting Arrangement on Request
Test Pressure
: Upto 6000 PSI / 10000 PSI
Gland Packing
: Standard PTFE ( Grafoil for high temperature)
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: NV - TOD - TOD - MOC

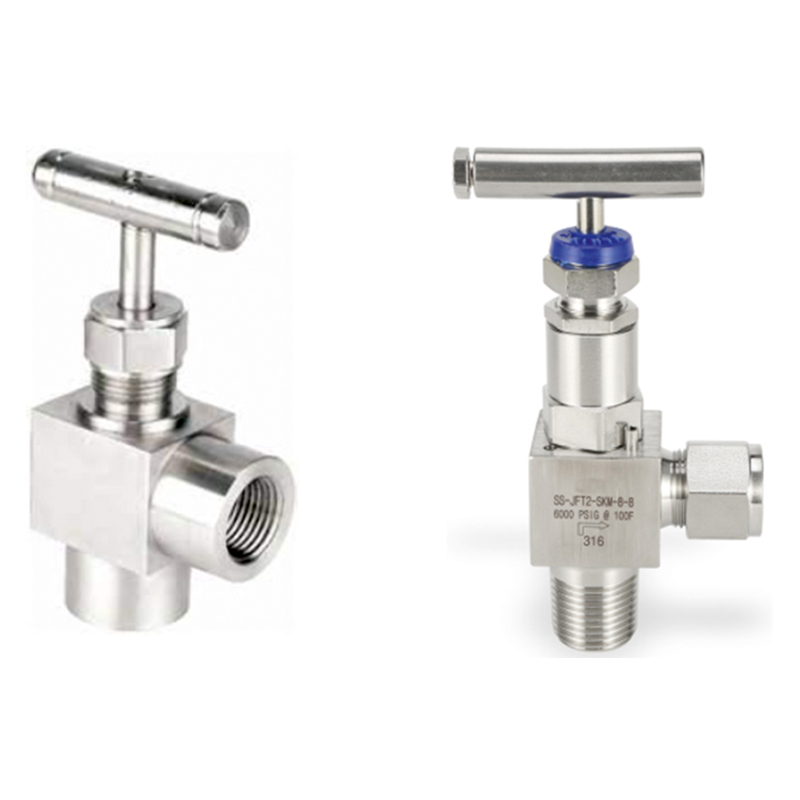

NEEDLE VALVE ANGLE (NVA)
×
End Connection
: FPT x FPT / TOD X FPT or MPT
Tube OD Size (TOD)
: From 1/8" OD to 2" OD ( Fractional) From 3mm OD to 38mm OD ( Metric)
Female Pipe Thread Size (FPT/MPT)
: 1/8" to 2" NPT ( Taper) Threads (BSPP / BSPT / ISO / Metric or Any Other Threads on Request)
Test Pressure
: Upto 6000 PSI / 10000 PSI
Gland Packing
: Standard PTFE ( Grafoil for high temperature)
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: NVA - FNT - TOD - MOC or NVA - TOD - TOD - MOC

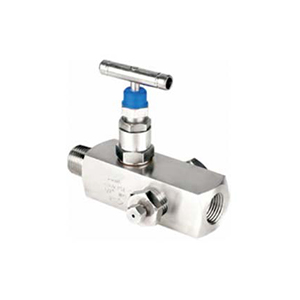

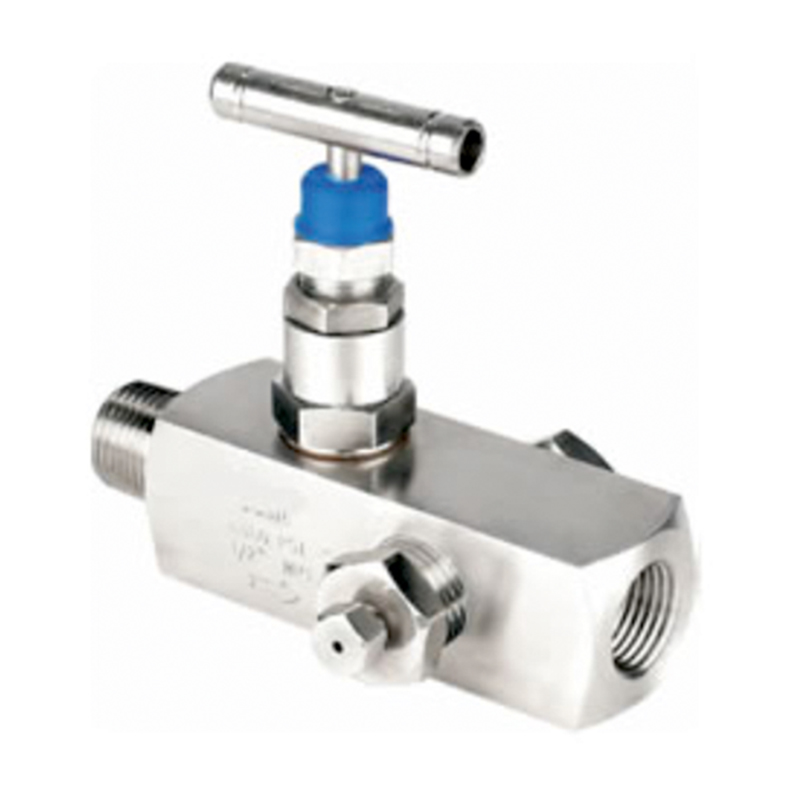

NEEDLE VALVE WITH DRAIN (NVD)
×
End Connection
: FPT x FPT
Female Pipe Thread Size (FPT)
: 1/8" to 2" NPT Female ( Taper) Threads (BSPP / BSPT / ISO / Metric or Any Other Threads on Request)
Drain Plug Size
: 1/8" to 1/2" NPT Male Plug
Test Pressure
: Upto 6000 PSI / 10000 PSI
Gland Packing
: Standard PTFE ( Grafoil for high temperature)
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: NVD - FPT - FTP - MOC

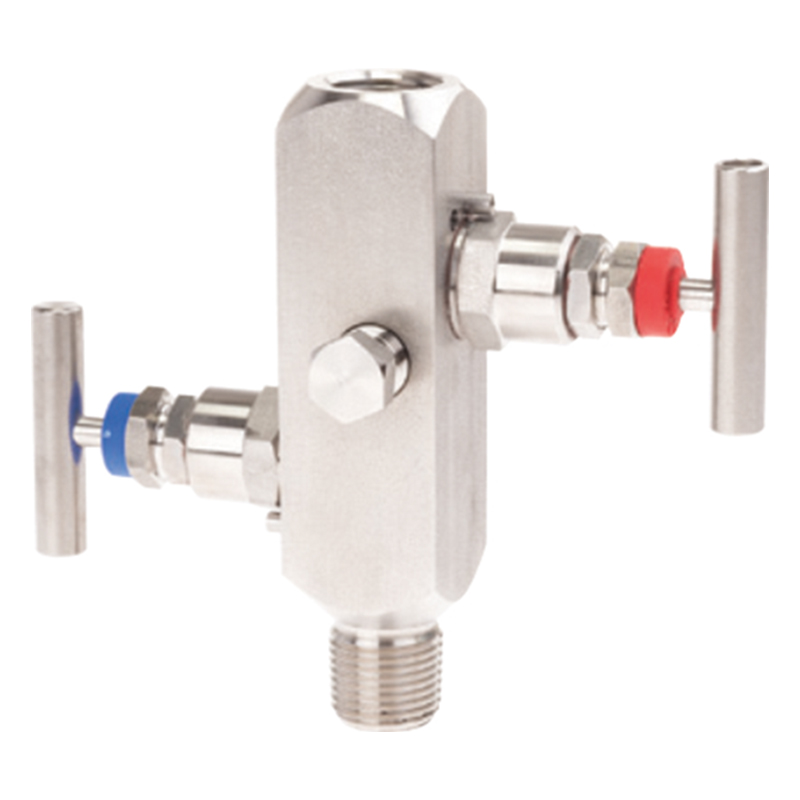

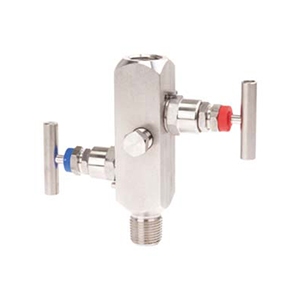

MULTI PART NEEDLE VALVE (MPV)
×
End Connection
: FPT x FPT
Female Pipe Thread Size (FPT)
: 1/8" to 2" NPT Female ( Taper) Threads (BSPP / BSPT / ISO / Metric or Any Other Threads on Request)
Port Size
: 1/2" NPT Female With Male Plug
Test Pressure
: Upto 6000 PSI / 10000 PSI
Gland Packing
: Standard PTFE ( Grafoil for high temperature)
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: MPV - FPT - FPT - MOC - NO OF PORT

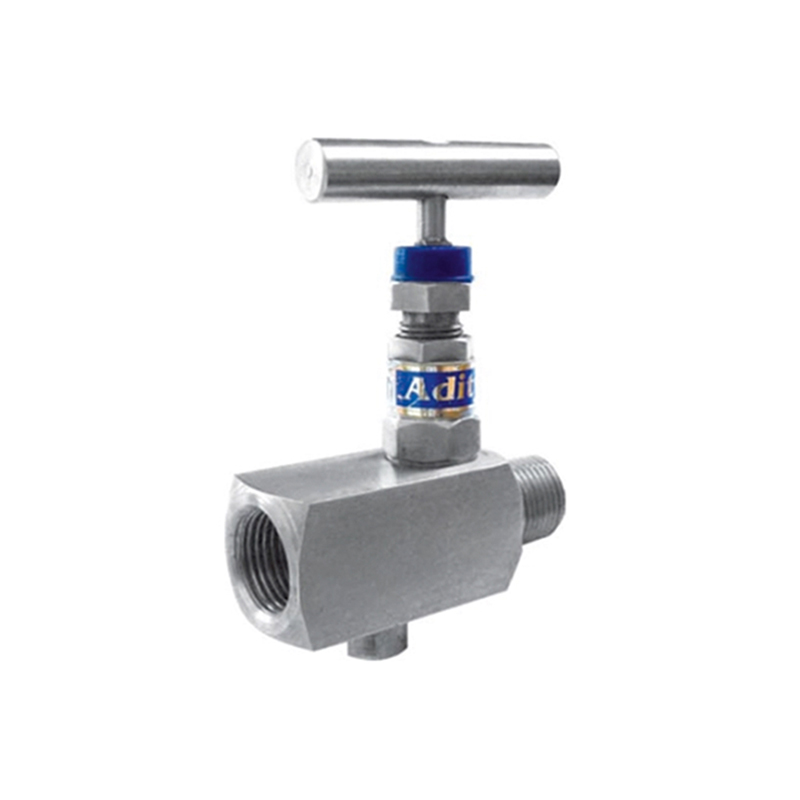

BLOCK AND BLEED VALVE ( BBV)
×
End Connection
: FPT x MPT
Female Pipe Thread Size (FPT/MPT)
: 1/8" to 2" NPT Female ( Taper) Threads (BSPP / BSPT / ISO / Metric or Any Other Threads on Request)
Drain Port Size
: 1/4" NPT Female With Male Plug
Test Pressure
: Upto 6000 PSI / 10000 PSI
Gland Packing
: Standard PTFE ( Grafoil for high temperature)
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: BBV - FPT - MPT - MOC
BALL VALVE (BV)
×
End Connection
: FPT x FPT
Female Pipe Thread Size (FPT/MPT)
: 1/4" to 2" NPT Female ( Taper) Threads (BSPP / BSPT / ISO / Metric or Any Other Threads on Request)
Test Pressure
: Upto 2000 PSI
Seat Packing
: PTFE
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: BV - FPT - FPT - MOC
BALL VALVEHIGH PRESSURE (BVHP)
×
End Connection
: FPT x FPT
Female Pipe Thread Size (FPT/MPT)
: 1/4" to 2" NPT Female ( Taper) Threads (BSPP / BSPT / ISO / Metric or Any Other Threads on Request)
Test Pressure
: Upto 6000 PSI & upto 10000 PSI
Seat Packing
: PTFE ( Peek Optional )
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: BVHP - FPT - FPT - MOC
BALL VALVE PANEL MOUNTING (BVPM)
×
End Connection
: TOD x TOD
Tube OD size ( TOD )
: From 1/8" OD to 1" OD (Fractional) From 3mm OD to 25mm OD (Metric)
Test Pressure
: Upto 6000 PSI & upto 10000 PSI
Seat Packing
: PTFE ( Peek Optional )
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: BVPM - FPT - FPT - MOC
THREE WAY BALLVALVE (3BVPM)
×
End Connection
: TOD x TOD x TOD
Tube OD size ( TOD )
: From 1/8" OD to 1" OD (Fractional) From 3mm OD to 25mm OD (Metric)
Test Pressure
: Upto 6000 PSI & upto 10000 PSI
Seat Packing
: PTFE ( Peek Optional )
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: 3BVPM - FPT - FPT - MOC
GAUGE COCK 2 Way (GC2)
×
End Connection
: FPT x FPT or MTP x FTP
Female Pipe Thread Size (FPT/MPT)
: 1/4" to 1/2" NPT Female ( Taper) Threads (BSPP / BSPT / ISO / Metric or Any Other Threads on Request)
Test Pressure
: Upto 500 PSI
Seat Packing
: PTFE
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: GC2 - FPT - FPT - MOC
GAUGE COCK 3 Way (GC3)
×
End Connection
: FPT x FPT x FPT or MTP x FTP x FPT
Female Pipe Thread Size (FPT/MPT)
: 1/4" to 1/2" NPT Female ( Taper) Threads (BSPP / BSPT / ISO / Metric or Any Other Threads on Request)
Test Pressure
: Upto 500 PSI
Seat Packing
: PTFE
MOC
: SS316, 304 / Alloy 400, 600, C276 etc..
Model Code (*)
: GC3 - FPT - FPT - MOC
